Features and Benefits
- General purpose low, medium, and high pressure hydraulic.
- Wide selection of end configurations allowing a diverse number of applications.
Product Information
-
Specifications

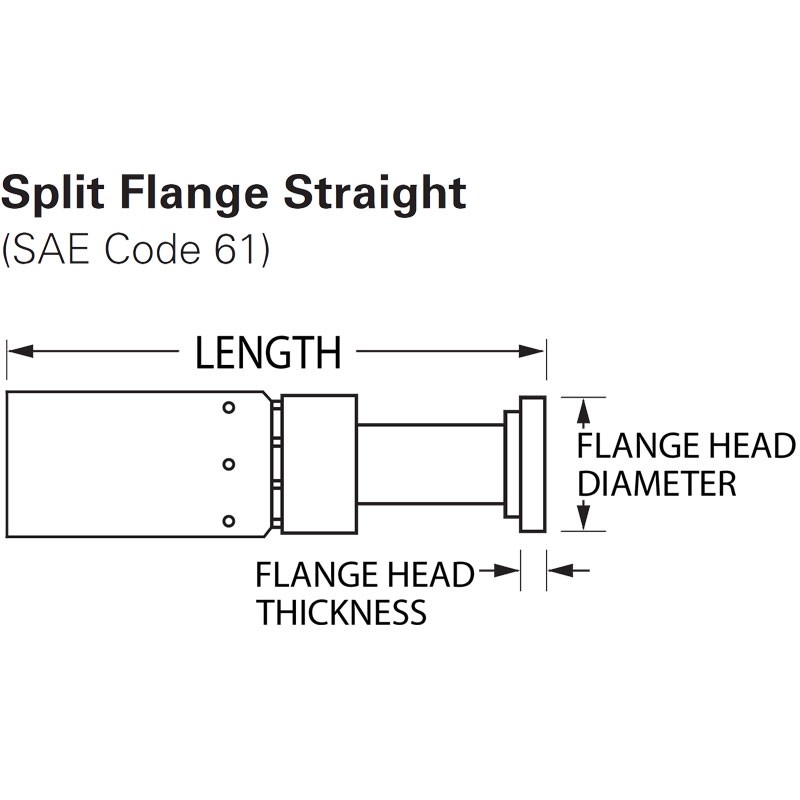

Hose I.D. 3/4" Material Carbon Steel Finish Trivalent Chromate (Clear), Zinc End Type Flanged Flange Head Diameter 1.50" (38mm) Tube Size 3/4" Run/Hose Cut-off Factor 2.25" Replacement O-Ring Size (not included) 12x252 Flange Head Thickness .265" Brand Eaton-Weatherhead "U" Series Fitting Type Split Flange Straight (SAE Code 61) Tube Angle Straight Length 4.4"
